Web

Performance and Future

Yan (Peter) Li / Sep 2015

http://10.197.38.188/velocity

http://10.197.38.188/velocity

https://github.microstrategy.com/pages/yali/web-performance-and-future

View online

http://10.197.38.188/velocity/pdf

http://10.197.38.188/velocity/pdf

Download PDF

Hello, I'm Yan

Yan Li Usher Badge
  • Joined MSTR in July 2008
  • Work on Usher Network Manager
  • Love Web

Topic

  • Web Performance Tuning
  • Brief Introduction to HTTP/2
  • A little on HTTPS

Hope it helps!

Do you know web?

Frontend + Backend

Page Size (top 1000)

Year Requests Avg. Transfer Size Growth
12/17/2010 82 655 KB N/A
12/15/2011 90 810 KB 24%
12/15/2012 99 1163 KB 44%
12/15/2013 112 1607 KB 38%
12/15/2014 117 1834 KB 14%
08/15/2015 128 2008 KB 9%

http://httparchive.org/trends.php

Page Size

Site Requests Size Time
www.163.com 434 3.6 MB 1.7 min
www.taobao.com 116 1.3 MB 40.35 s
www.jd.com 79 1.6 MB 1.2 min
www.microsoft.com 76 2.2 MB 16.79 s
www.microstrategy.com 81 1.1 MB 37.29 s

Network speed

Desktop Mobile
Data rate Latency G Data rate Latency
10 Mbps
100 Mbps
1 Gbps
65-145 ms 2G 100-400 Kbps 300-1000 ms
3G 0.5-1 Mbps 100-500 ms
4G 1-50 Mbps <100 ms

http://www.webperformancetoday.com/2012/04/02/mobile-versus-desktop-latency/
http://chimera.labs.oreilly.com/books/1230000000545/ch07.html#_brief_history_of_the_g_8217_s

Faster web sites

What rules/best practices do you know?

YAHOO! Best Practices

  1. Make Fewer HTTP Requests
  2. Use a CDN
  3. Add Expires or Cache-Control Header
  4. Gzip Components
  5. Put Stylesheets at Top
  6. Put Scripts at Bottom
  7. ...

https://developer.yahoo.com/performance/rules.html

Google PageSpeed insights

https://developers.google.com/speed/pagespeed/insights/

Page load timeline

redirections DNS TCP request
response
rendering
minimize
redirection
reduce
lookups
spriting

minify
caching

domain
sharding
css on top

js at bottom

Similar graph: http://www.w3.org/TR/navigation-timing/#processing-model

Redirections

redirections DNS TCP request
response
rendering
minimize
redirection

Minimize Redirections

  • Links/forms
  • HTTP 3XX status codes
  • HTML meta refresh
    <meta http-equiv="refresh" content="5; url=http://example.com/">
  • JavaScript

    window.location.reload(true); // document.location?
    window.location.replace("http://www.z.cn");
    window.location.assign("http://www.z.cn");
    window.location.href = "http://www.z.cn";
    window.location = "http://www.z.cn";
    window.history.forward();
    window.history.back();
    window.history.go(-1);


DNS

redirections DNS TCP request
response
rendering
reduce
lookups

DNS lookup

www.google.com

  1. Browser/OS cache
  2. Intranet cache
  3. ISP/local cache
  4. Root name server
  5. .com name server
  6. google.com name server

How fast is your local DNS?

chrome://histograms/DNS.ResolveSuccess

  • Good: <30ms
  • Average: 30-100ms
  • Ouch: 100ms+

HttpDNS

  • 1st request: Http gets nearest server IP
  • Subsequent: nearest server IP

全局精确流量调度新思路-HttpDNS服务详解
App域名劫持之DNS高可用 - 开源版HttpDNS方案详解

DNS prefetch

                            <link rel="dns-prefetch" href="www.microstrategy.com">


Hint browser to pre-resolve these names

Supported: Chrome, Firefox, Safari, IE9+

chrome://dns/

TCP

redirections DNS TCP request
response
rendering
spriting

minify

TCP 3-way handshake

Host A -----SYN-----> Host B
<---SYN ACK---
-----ACK----->

See TCP 3-Way Handshake (SYN,SYN-ACK,ACK)

TCP Slow Start

TCP Slow Start

TCP Slow Start

Wikipedia: Slow Start

Tuning initcwnd for optimum performance

Linux TCP/IP tuning for scalability (tcp_slow_start_after_idle)

Request & Response

redirections DNS TCP request
response
rendering
caching

domain
sharding

Caching

Caching Tutorial by Mark Nottingham

Check your pages with REDbot

Domain Sharding

Browser 2(1999) simultaneous connections 6-8(2010) simultaneous connections Domain

http://www.mobify.com/blog/domain-sharding-bad-news-mobile-performance/

Resource Prefetch


<link rel="prefetch" href="next-page.css">
<link rel="subresource" href="critical.js">


  • prefetch
    • Low-priority download of resources to be used on subsequent pages
    • Chrome, Firefox, Safari, IE9+
  • subresource
    • Early loading of resources within the current page
    • Chrome only

Rendering

redirections DNS TCP request
response
rendering
css on top

js at bottom

Inline critical resources

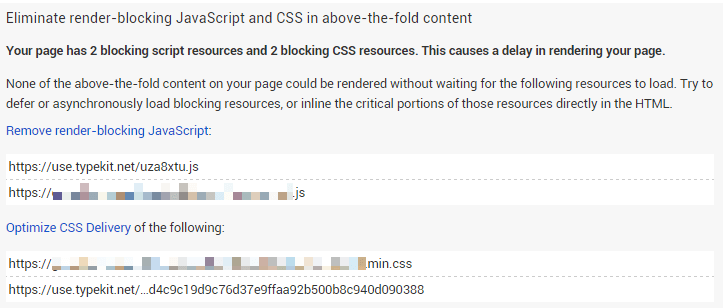

Inline Critical Resources

http://www.smashingmagazine.com/2015/08/understanding-critical-css/

Alva Cheung

“Load non-critical features asynchronously”

Facebook - The technology behind preview photos

Prerender

                            <link rel="prerender" href="http://www.microstrategy.com">


Initiate background pre-render of entire page

Supported: Chrome, Firefox

chrome://net-internals/#prerender

chrome://predictors/

JavaScript rendering

Why care?

Static Web Pages Interactive
CSSHTMLJavaScript
CSSJavaScriptHTML

AngularJS, React

Inline Caching

Speed up runtime method binding by remembering the results of a previous method lookup directly at the call site

https://en.wikipedia.org/wiki/Inline_caching

Inline Caching can be easily broken


function addTwoThings(thing1, thing2) {
    return thing1 + thing2;
}

addTwoThings(1, 2);
addTwoThings(100, 200); /* fast */
addTwoThings('a', 'b'); /* slow */


function Dog(name) {
    this.name = name;
}

var dog1 = new Dog('Jim'); /* hidden class C1 */
var dog2 = new Dog('Bin'); /* hidden class C2 */
dog2.gender = 'male';


CSS rendering

  • Reflow
    • relocate elements
    • change content
    • window resize
  • Repaint
    • change color
    • change background color
    • change visibility

Event debouncing/throtting

onresize, onscroll...etc

Use the DOM change queue


var $div = $('#content')
var elements = ['a', 'b', 'c', 'd'];
for(var i=0,l=elements.length; i<l; i++) {
    $div.append(elements[i]);
}



var $div = $('#content')
var elements = ['a', 'b', 'c', 'd'];
for(var i=0,l=elements.length; i<l; i++) {
    // one line of evilness
    var a = $(window).scrollTop;
    $div.append(elements[i]);
}


Painting performance

  • Minimize DOM depth
  • Minimize z-index depth
  • Minimize CSS rules
  • Use faster selectors
    • Avoid descendant selector
    • Structure selector right to left
      .class ul li a { color: blue; }
  • Use expensive properties sparingly
    border-radius; box-shadow; transform,filter; :nth-child; position:fixed;
  • Don't use universal selectors
    *; [disabled]; [type="text"]

Improving CSS Performance

Prepare for HTTP/2

IETF RFC 7540

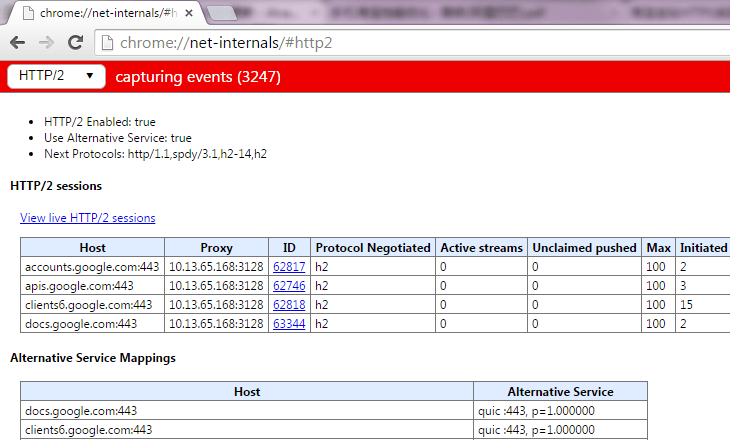

HTTP2 Chrome net-internals

HTTP/2 Aims

  1. Reduce latency
  2. Reduce total number of TCP connections
    i.e., reduce number of open sockets
  3. Maintain compatibility with HTTP/1.1
    clients and server
  4. Maintain same usability as HTTP/1.1
    i.e., can be used wherever we use HTTP/1.1
  5. Better web security

HTTP/2 Features

  1. Multiplexing
    Multiple asynchronous HTTP requests over a single TCP connection.
  2. Server Push
    Multiple responses for single request
  3. Header Compression
    Compress HTTP headers along with content.
  4. Request prioritization
    While making multiple HTTP requests to a same domain they can be prioritized.
  5. Binary Protocol
    HTTP/2 is binary protocol whereas HTTP/1.1 is text protocol.

HTTP/2 Complete Tutorial

HTTP/2 Compatibility

Request Response
HTTP/2 Client HTTP/1.1 Server HTTP/2 Server

GET / HTTP/1.1
Host: server.example.com
Connection: Upgrade, HTTP2-Settings
Upgrade: h2c
HTTP2-Settings: <payload>

HTTP/1.1 200 OK
Content-Length: 243
Content-Type: text/html

...


HTTP/1.1 101 Switching Protocols
Connection: Upgrade
Upgrade: h2c

[ HTTP/2 connection ...


See IETF RFC 7540

Mulplexing in HTTP/2

  • HTTP/1.1 Pipelining
    • Multiple HTTP requests are sent on a single TCP connection asynchronously
    • Server responses synchronously
    • First-in-first-out
    • Head-of-line (HOL) blocking, see Wiki
  • HTTP/2 Mulplexing
    • Streams and frames
      Every HTTP/2 request and response is given a unique id called as stream id
    • Server also responses asynchronously
    • The request and response both happen parallelly

Server push in HTTP/2

  • Server sends multiple responses for a single request
  • A client can request that server push be disabled
  • A client cannot push

IETF RFC 7540, Section 8.2 Server Push

Header compression in HTTP/2

  • A technique of not sending the same headers again
  • Client and server maintain a headers table containing the last response and request headers
  • For the first request or response they send all the required header
  • For subsequent requests client and server omit headers which are same as the previous request or response

IETF RFC 7541, HPACK: Header Compression for HTTP/2

HTTPS

HTTP + SSL/TLS = HTTPS

  • Authentication
    Am I talking to who they claim to be?
  • Data integrity
    Has anyone tampered with the data?
  • Encryption
    Can anyone see my conversation?

Equally Important!

Encyption

  • Handshake: asymmetric crypto
  • Application data transfer: symmetric crypto

Transport Layer Security

Is HTTPS slow?

  • Extra CPU costs
  • Extra roundtrips

IsTlsFastYet.com:

“TLS has exactly one performance problem: it is not used widely enough.
Everything else can be optimized.”

Dive deeper: YouTube - Is TLS Fast Yet?

HTTPS

  • Get a 2048-bit TLS certificate
  • Eliminate both Yello Triangle and Shield
  • Use latest version of Kernal, OpenSSl and Apache/Nginx
  • Use SPDY3.1 & HTTP/2
  • Use protocol relative URIs
    <script src="//code.jquery.com/jquery-1.11.3.min.js"></script>
  • HTTP URL --> 301 --> HTTPS URL
  • Apply HSTS (see next slide)

Mozilla Wiki
Qualys SSL Labs

HTTP Strict Transport Security (HSTS)

                            Strict-Transport-Security: max-age=10886400; includeSubDomains


Browser remembers (for specified max-age period) that it should automatically request HTTPS resources for this site and its subdomains.

HSTS eliminates HTTP --> HTTPS redirects.

Recommend

Web Development Reading List: https://wdrl.info/

References

  1. The Quest to Delight Our Users by Alva Cheung(Google)
  2. eBay对页面性能的监控和调优 by 施尉霁(eBay)
  3. 淘宝全站HTTPS实践 by 李振宇(阿里巴巴)
  4. 手机淘宝性能优化 by 黎明(阿里巴巴)
  5. Google I/O 2014 - HTTPS Everywhere
  6. Preconnect, prefetch, prerender by Ilya Grigorik
  7. Resource Hints
  8. https://http2.github.io/
